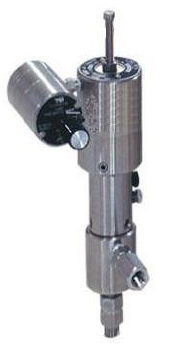

87 SERIES METERING PUMP / CHEMICAL METERING PUMP

BENEFITS

• External lubrication free
Plunger packing design eliminates the need for external lubrication

• Space critical Design
Compact physical size

• Simple check valve servicing
Easily disassemble

• Low operation costs
Small volume piston design uses less actuation gas

• Timer reliability
Pneumatically actuation timer utilizes diaphargms for lubrication –free repeatable performance

• Repeatable
Positive displacement plunger design ensures repeatability

• Safe
Intrinsically safe pneumatic design

• Corrosion resistance
Manufactured en stainless steel 304 and 316

• Longer piston seal life
Exactly 90 grades machined threaded, plunger/piston assembly eliminates irregular wear on the plunger seal

• Reliable
Fewer moving parts

• Proportional to flow and batch control option

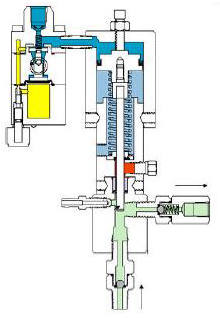

Pneumadose – 87 Series: Pneumatic , Plunger type metering pump ; Selection Chart

Model Number Plunger Diameter Piston Diameter Maximun rate (l/h) Minimun rate (l/h) Maximun pressure
(bar)		 Amp ratio Volume per stroke
Stroke lenght

87-11-X

1⁄4”

1 1⁄2”

2,41

0,024

172

29:1

0,804

1”




GENERAL SPECIFICATION

Wetted parts

Pneumatic Section
Pump Body: 304 Stainless steel Piston Housing: 303 Stainless Steel
Plunger: 17-4 PH Stainless Steel Timer: 303 Stainless Steel
Plunger Seal: KALREZ

Plunger Size:

 1⁄4” plunger diameter

Check valves



Pressure:

 to 2500 psi, maximun
Body: 316 Stainless Steel

Optional materials:

 Hastelloy, Monel, Titanium
Ball: 440 C Stainless Steel
Seat: Viton



ACCESORIES

1. Injection Valve

ORDEN NO.

DN

PN [bar]

Material

Temp. Max.

d

l [mm]

L [mm]

Connection to
522-0911 8 10

1.4571/Viton

/1.5471

 100ºC R 1/2" 27 92 pipe R 1/4"



2. Level gauge

NO

NAME

PART NO.

MATERIAL
1 Tube Fitting adapter DG55-3 316 SS
2 Lock Nut DG55-2 Plated Steel
3 O Ring Seal (2) D25-PVC-12/6 Viton/Buna N
4 Housing DG55-4 303 SS
5 Gauge Glass DG55-1 Pyrex
6 O Ring Seal DG55-6 Viton /Buna N



3. Pressure Regulator

SENSITIVITY

FLOW RATES

MAX.PRESSURE
0.1 PSI 20SCFM 250 PSI
D 689kPa 566m3/min 1724 kPa



4. Liquid Filter

MODEL

CONNECTION FILTER ELEMENT

OPTIONAL FILTER ELEMENT
LCF10-25 1/4" NPT
25 micron, Std		 1, 2, 8, microns or 100 mesh stainless steel screen
LCF15-25 1/2" NPT
25 micron, Std

Up
